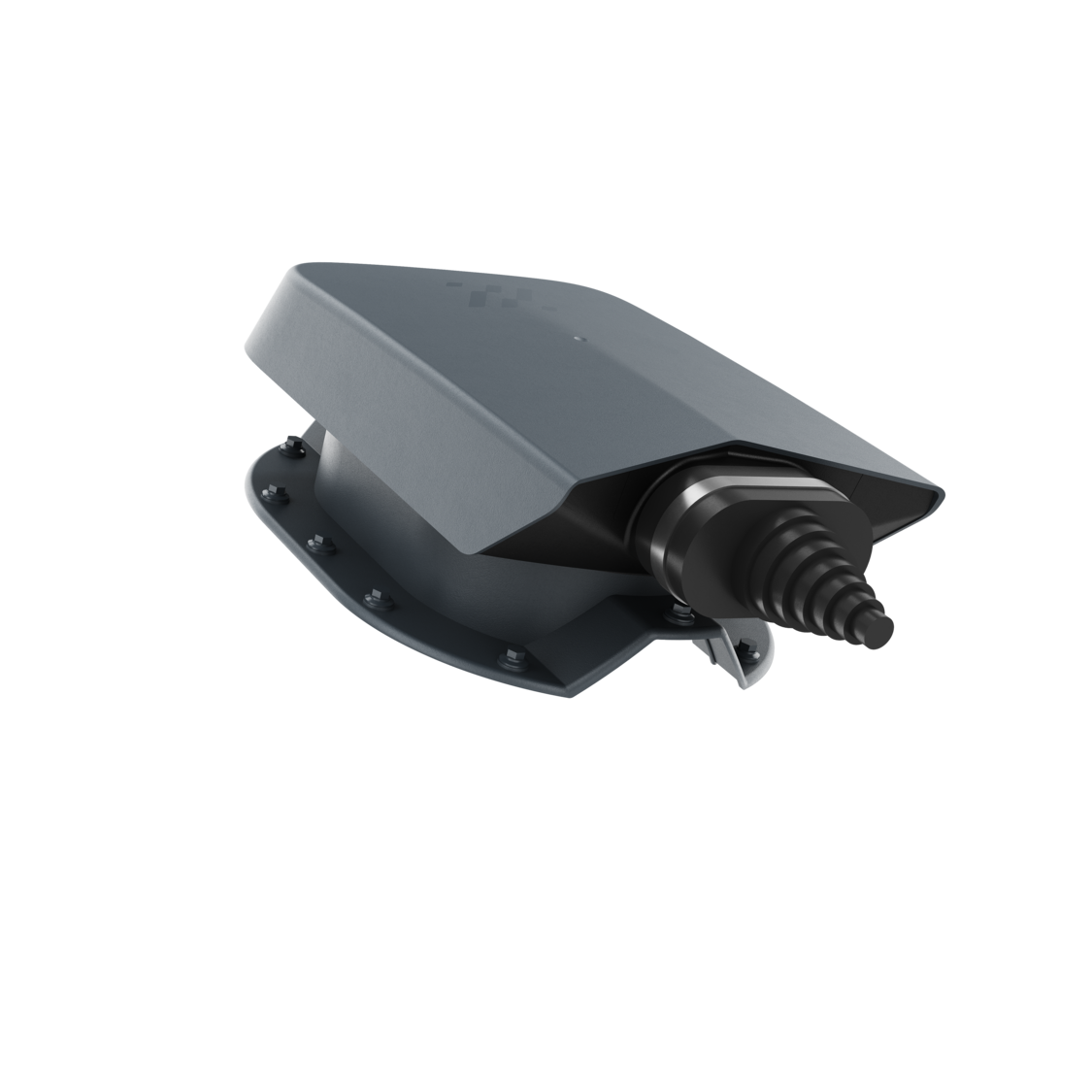

System solution for cable penetration
System solution for PV or solar system cable penetration through the roofing. Fits to shingle, slate and standing seam roofs.
Product features
TIGHTNESS
EPDM rubber guarantees tightness of the penetration of the cables through the roofing. EPDM rubber is UV resistant, doesn’t crumble, doesn’t harden over time
1
COLORS
consistent color with vertical vents, matched to the roof color
3
VERSATILITY
reducing pyramid made of epdm rubber enables cable penetrating of various thicknesses
5
2
MATERIAL
products made of high quality UV resistant polypropylene
4
VARIETY OF BASES
available with shingle, slate and standing seam roofs
6
EASY INSTALLATION
set contains all necessary elements for assembly, except for the screwdriver
Colors and product codes
PS-2-10-PG light grey
PS-2-09-PG graphite
PS-2-02-PG black
PS-2-01-PG brown
PS-2-09-PI graphite
PS-2-02-PI black
PS-2-01-PI brown
PS-2-10-PI light grey
Product application possibilities
Technical data
 |
 |
|
| Product code: | PS-2-__-PG | PS-2-__-PI |
| Maximum diameter of the cable: | 2 x 1″ / 1 x 1″t | |
| Base dimensions (in.) L x W: | 18.1 x 14.6 | 12.7 x 9.5 |
| Material: | polypropylene, UV resist, EPDM rubber | |
| Weight: | 2.08 lbs | 1.94 lbs |
| Height: | 4″ | |
| Roof pitch: | Slope roofs from 15 degrees | |
| Sealant (flat base PI): | Butyl tape:Is sealant able to form an instant and permanent bond to any clean and dry surface, but it remains flexible even after withstanding fluctuating conditions.This sealant is also extremely weather-resistant because it self-heals, which means bolts and fasteners won’t hinder its sealing abilities. That makes it particularly valuable for roofing applications as installation, and even reinstallation down the line, will not compromise its durability. | |
| Set contains: | Cable Roof Penetration, base, EPDM rubber, plastic clamp band screws, installation instruction | |
